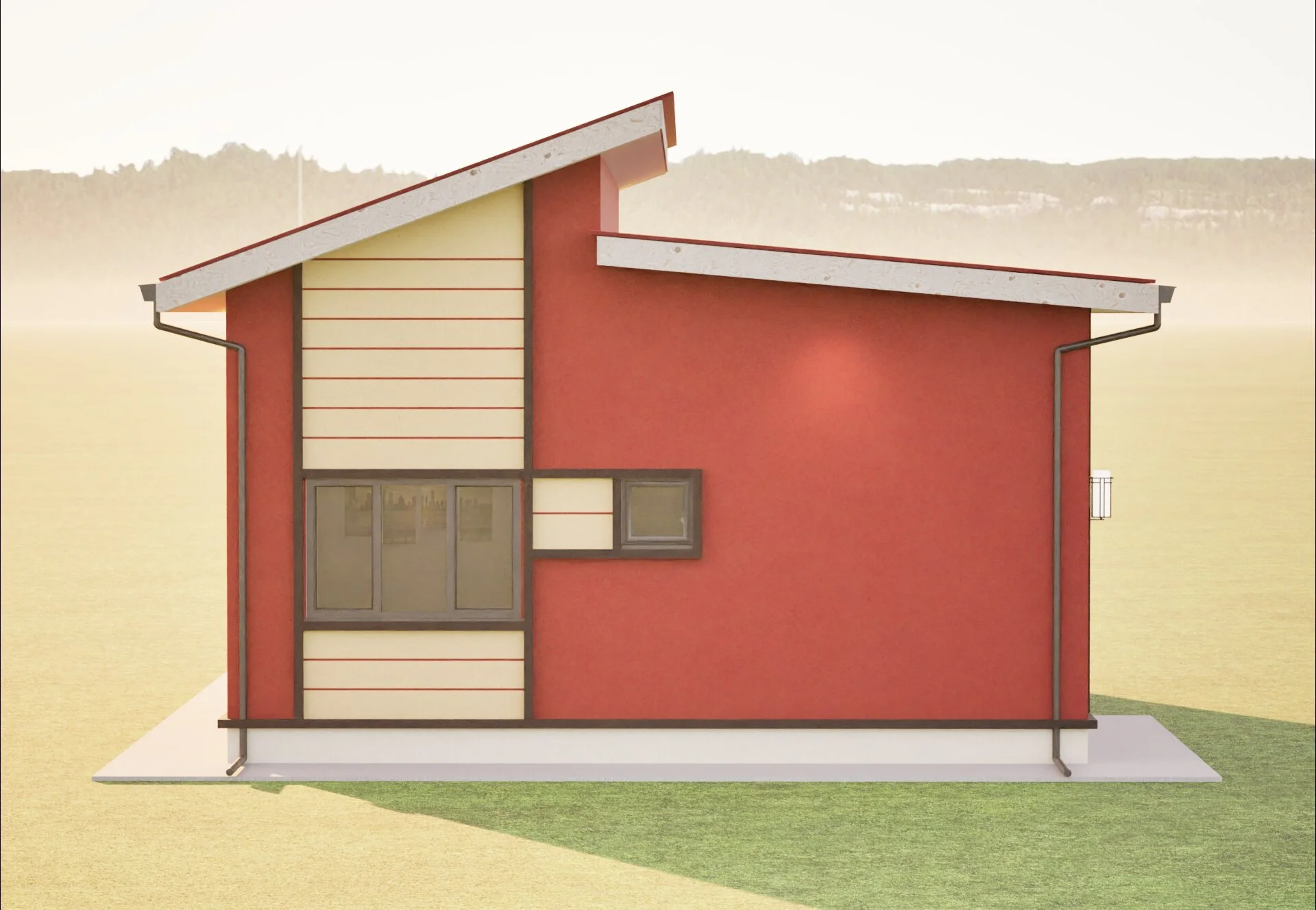

LEFT ELEVATION

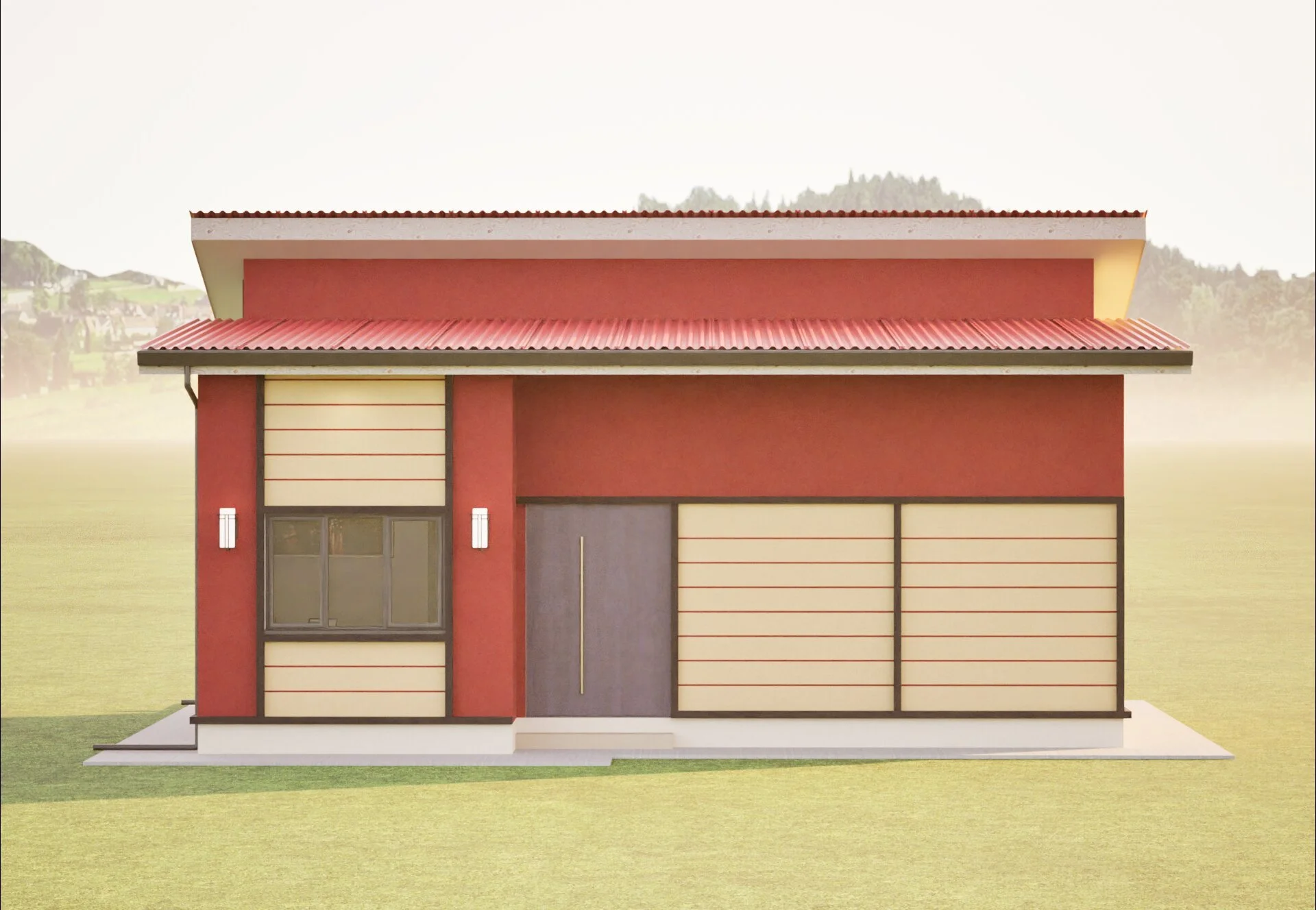

FRONT ELEVATION

REAR ELEVATION

RIGHT ELEVATION

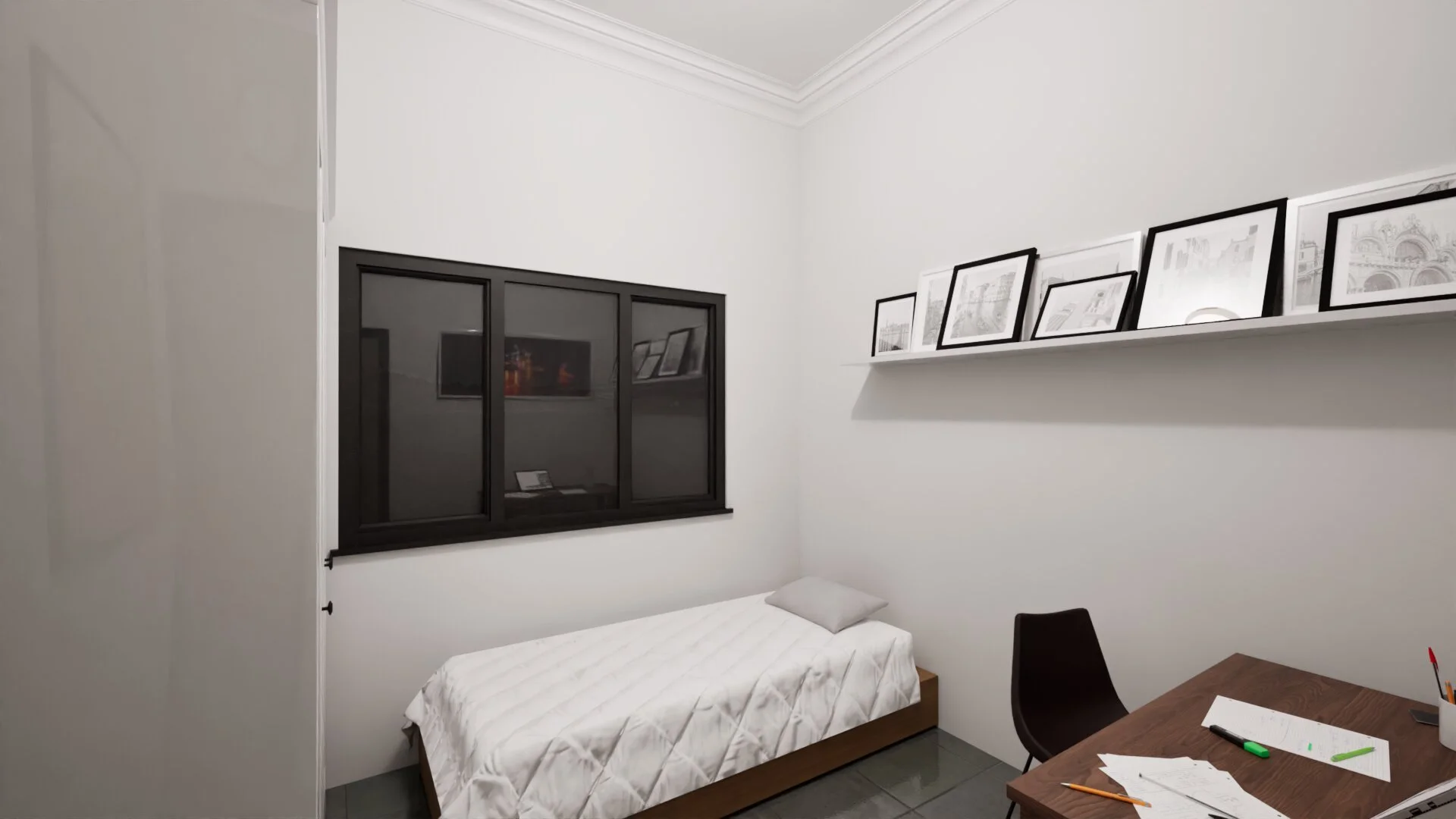

BED 1

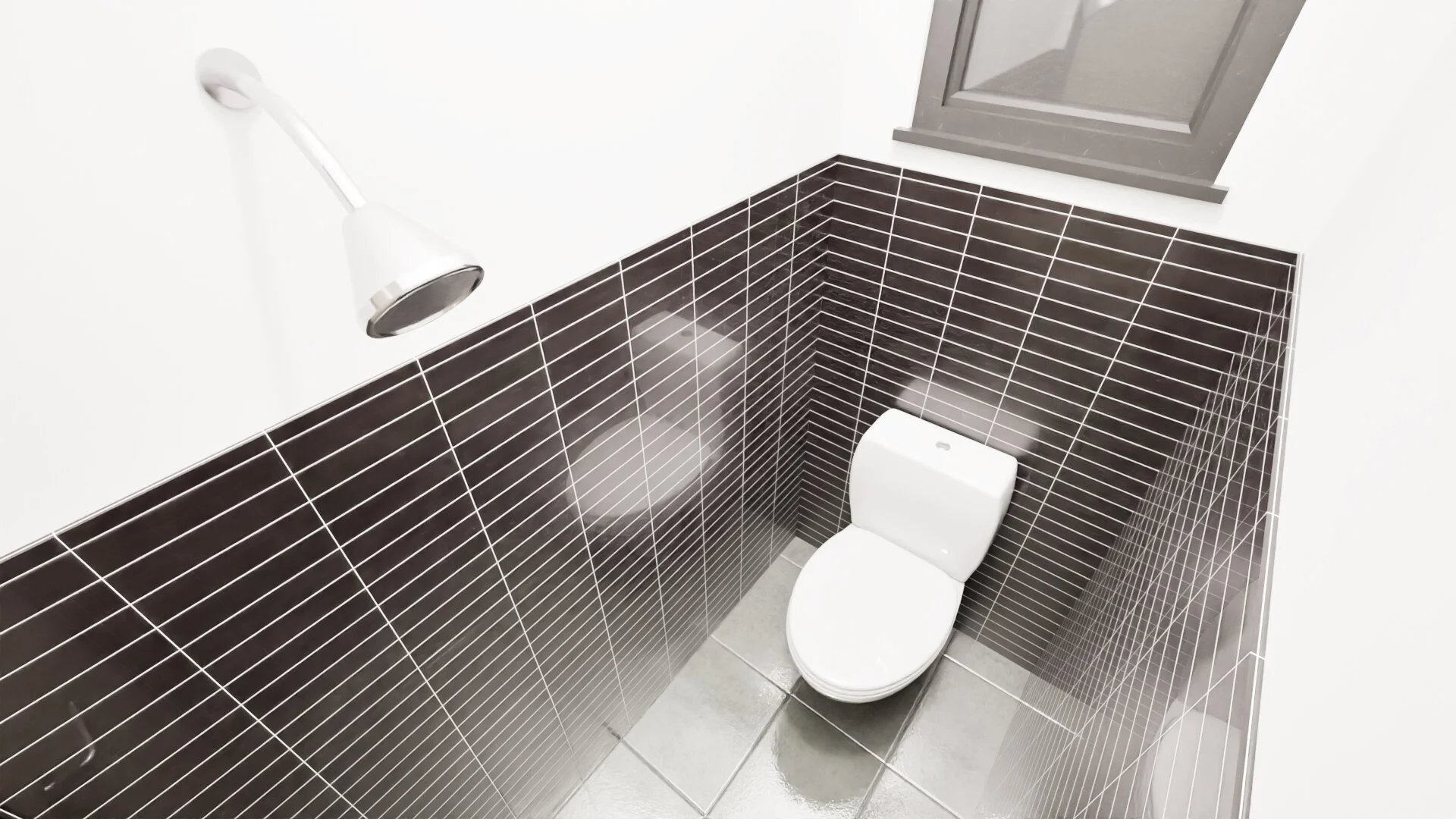

TOILET 1

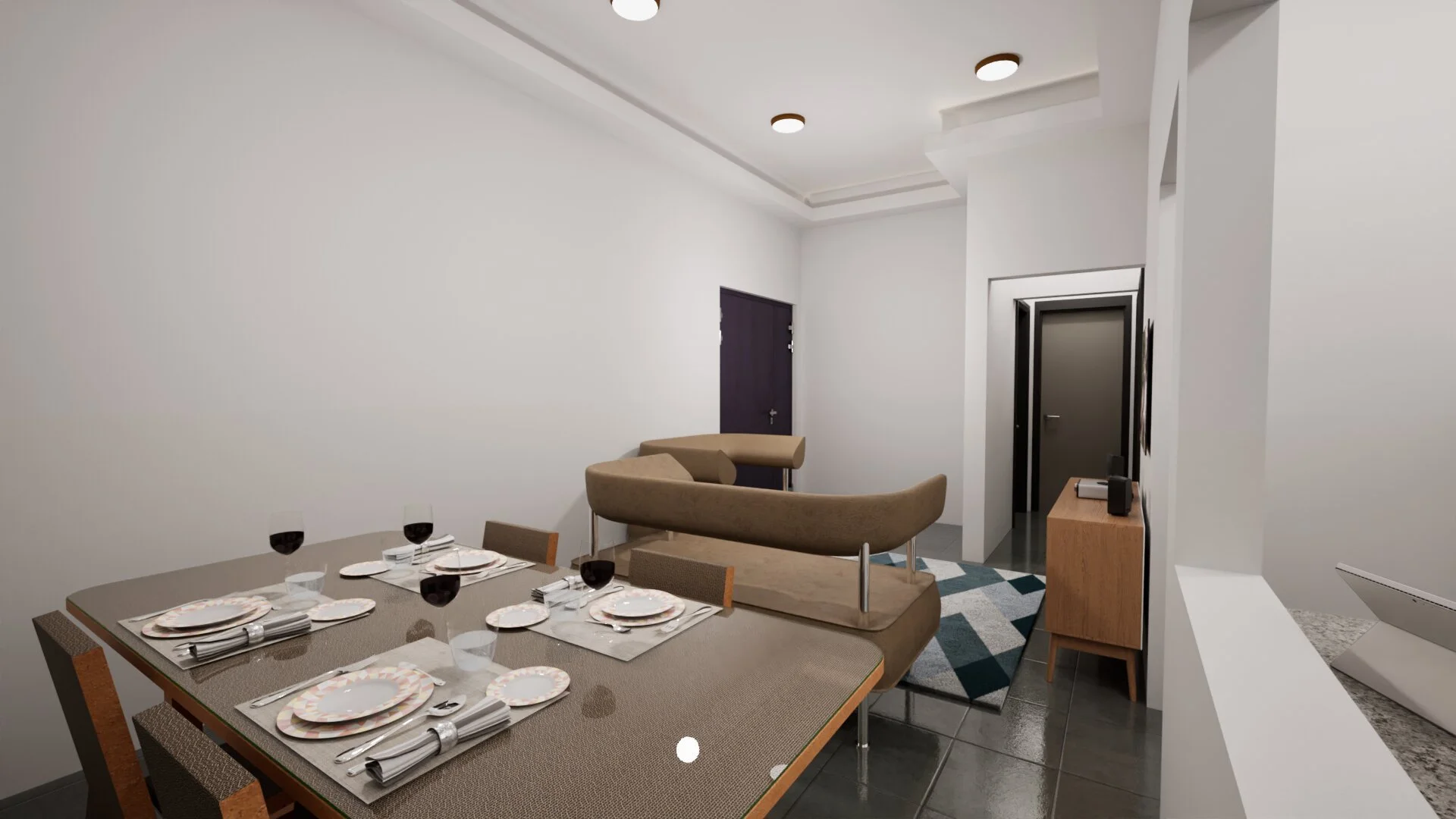

DINING & LIVING

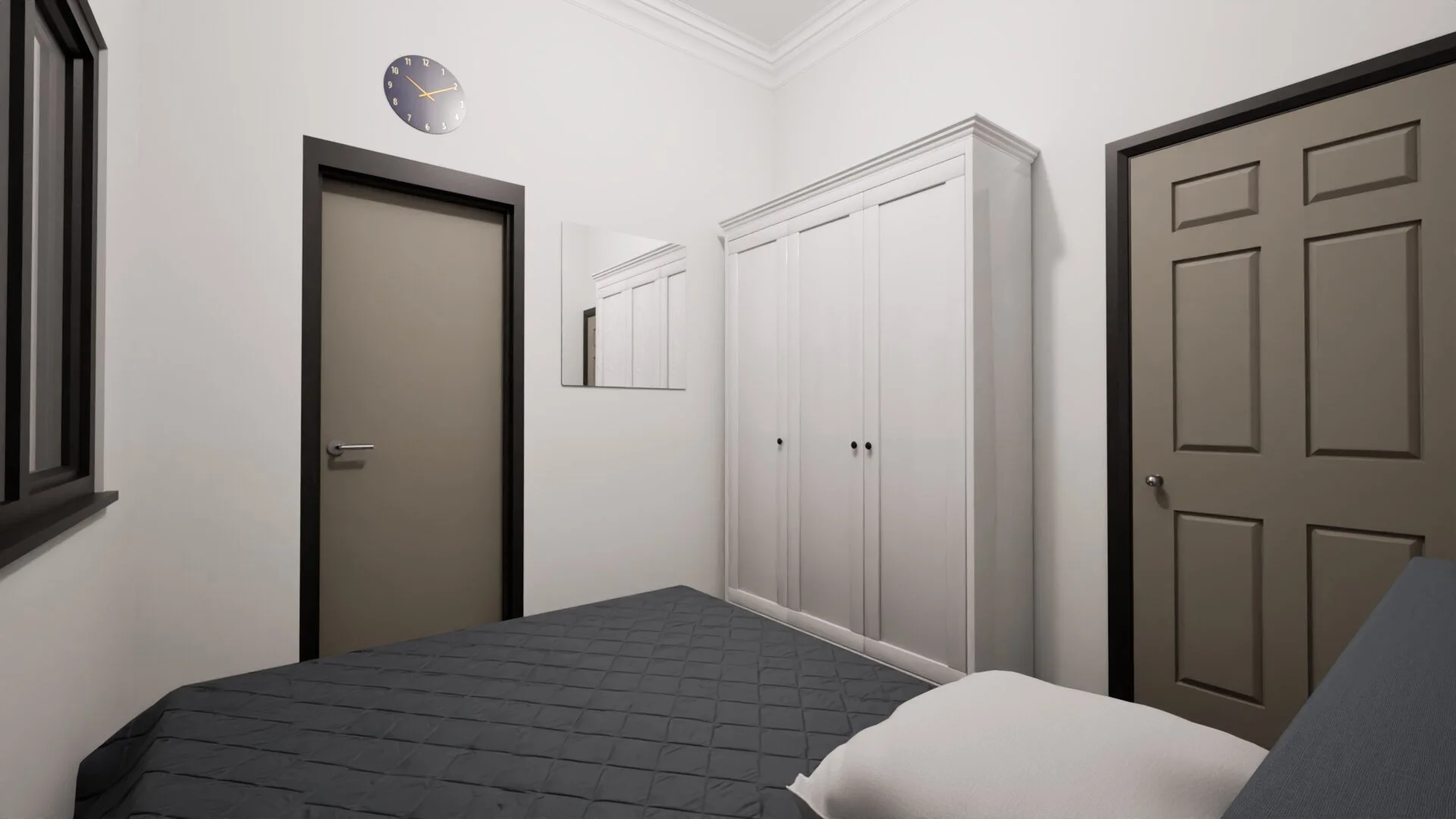

MASTER BEDROOM

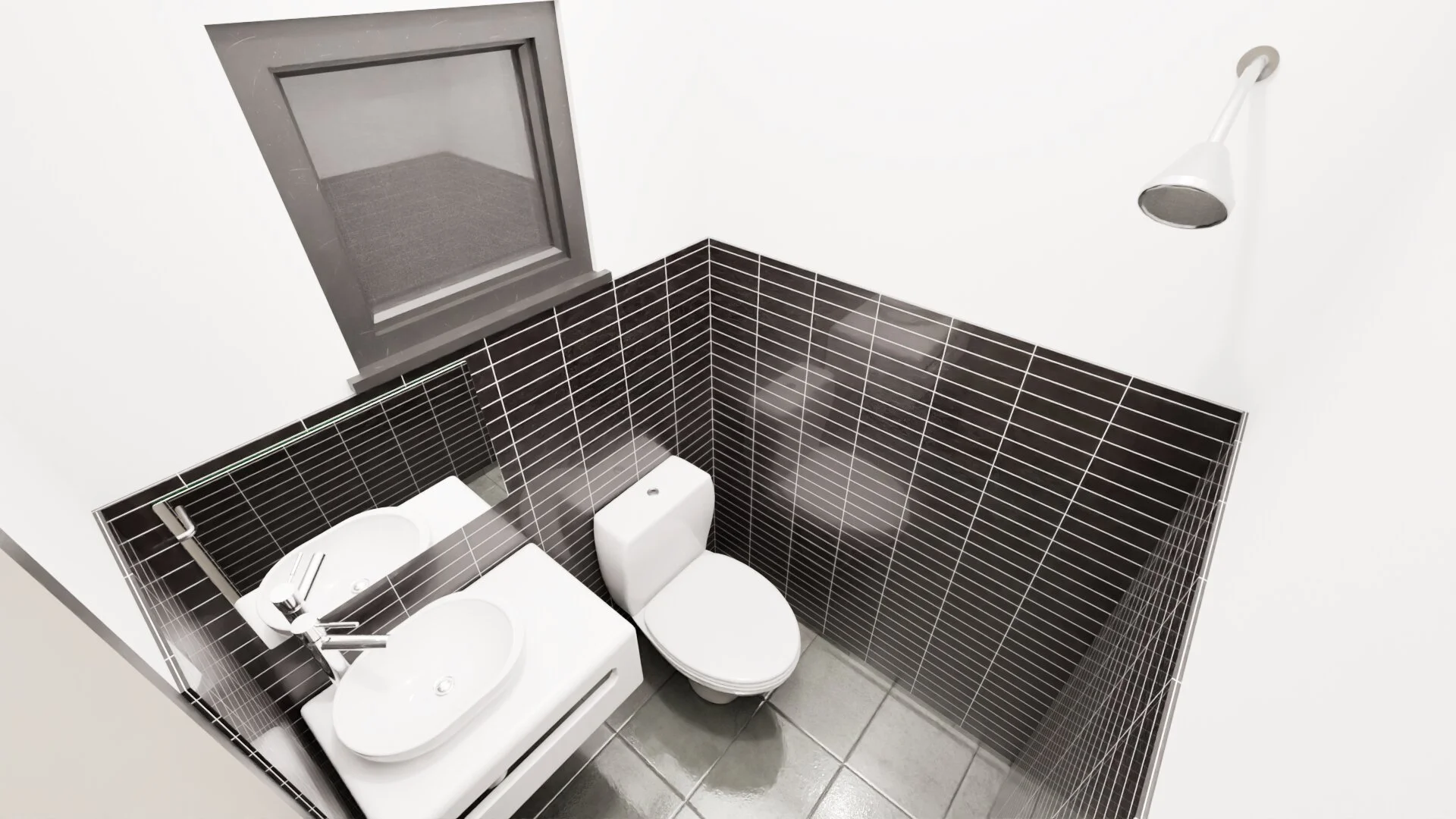

M. BEDROOM TOILET

KITCHEN

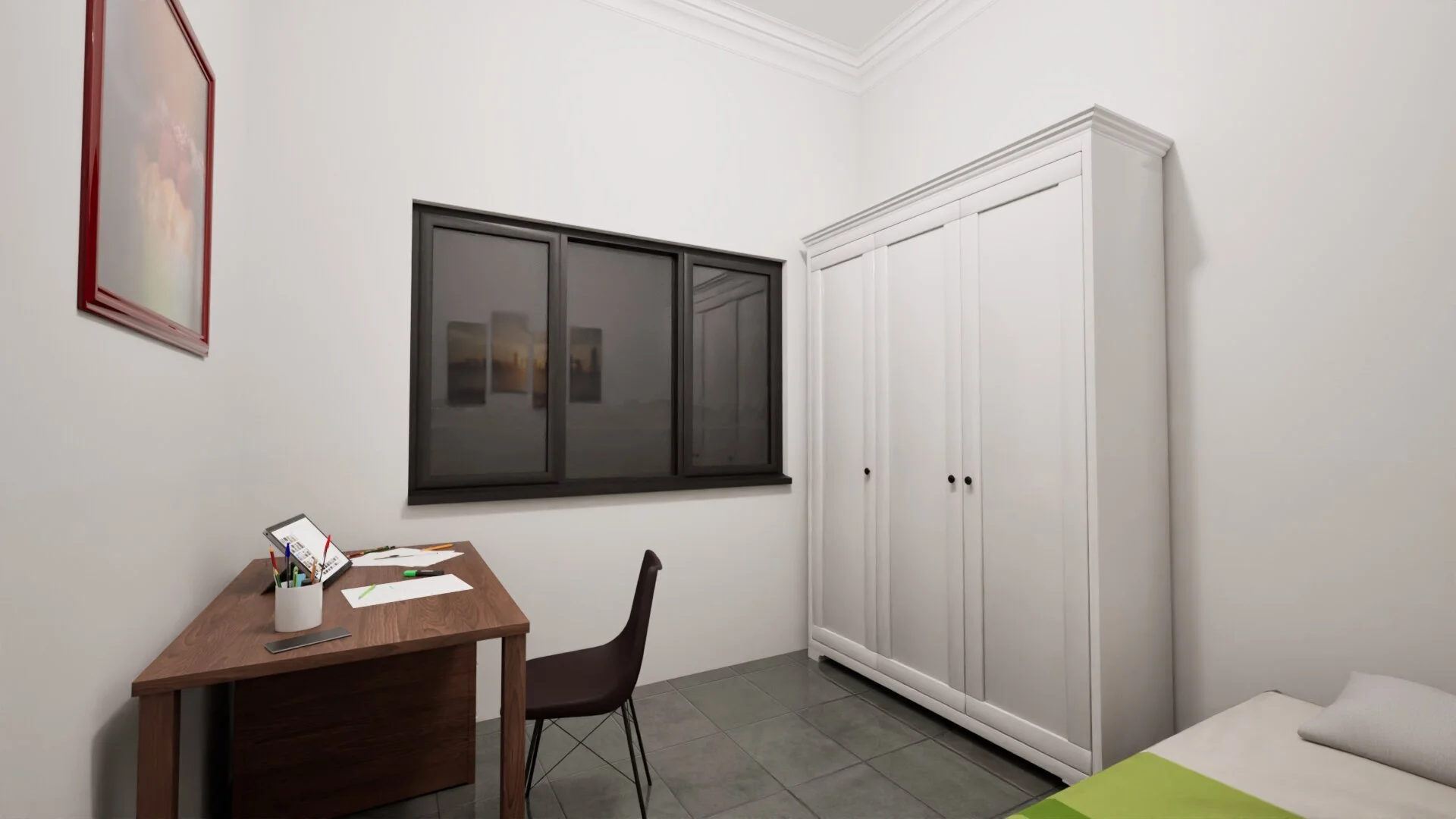

BED 2

DINING & LIVING

30 ft x 20 ft (600 sqft) – 3 Bedroom, 2 Bathroom Single-Storey House

This 30 ft x 20 ft single-storey house is designed with a modern double skillion roof, providing a clean architectural profile, better rainwater flow, and improved natural ventilation. With a well-balanced internal layout, this home offers comfort and privacy while remaining cost-efficient and practical for Malaysian living.

Layout Description

  • Living & Dining Area
    Open-plan living and dining area located at the front of the house, providing a spacious and welcoming environment suitable for daily family activities and guests.

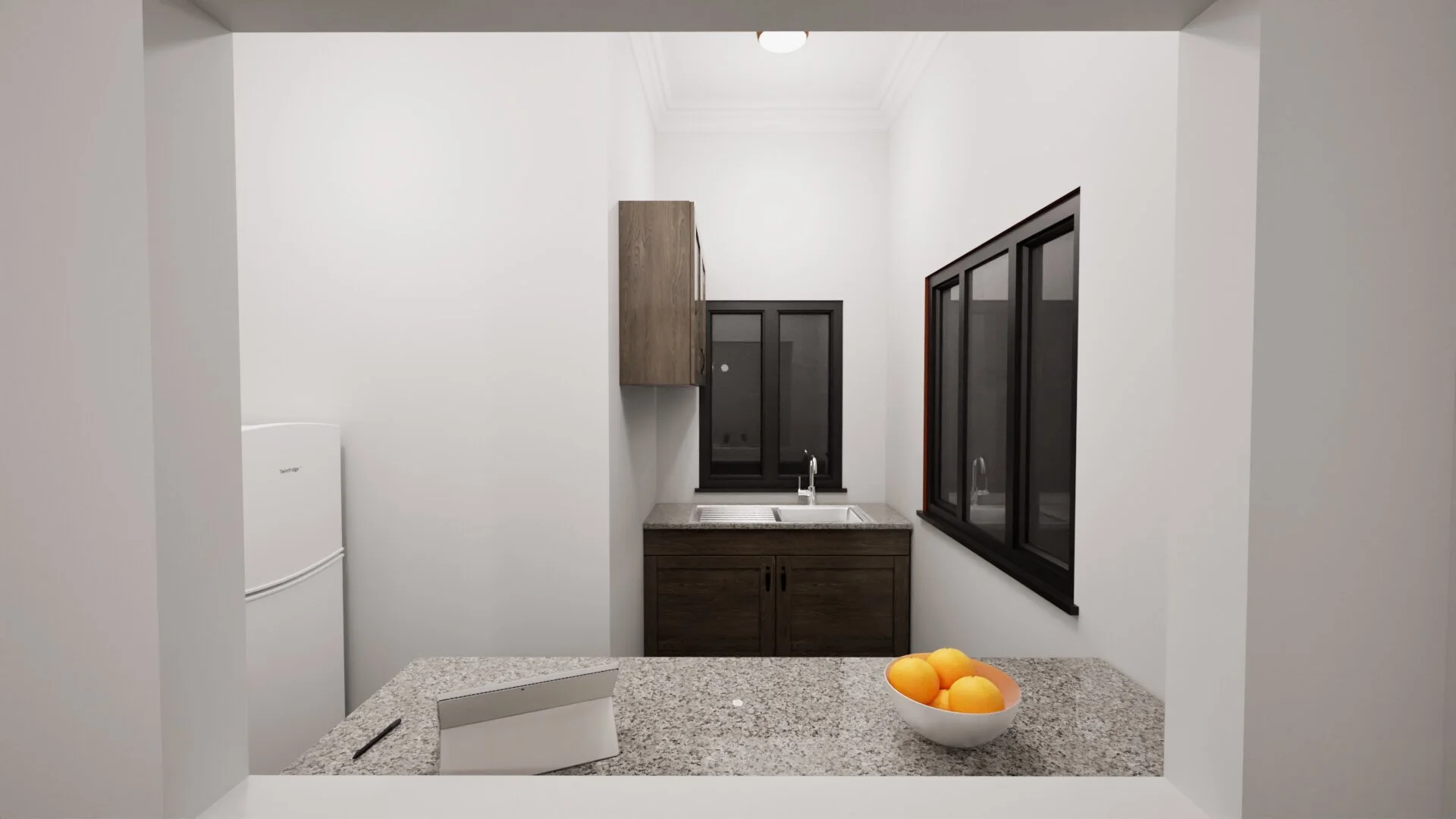

  • Kitchen Area
    Positioned at the rear of the house with practical working space for cabinets, sink, and cooking area, designed for efficient airflow and easy access.

  • Master Bedroom

    • Designed to fit a queen-size bed and wardrobe

    • Comes with a private attached toilet for added comfort and privacy

  • Bedroom 2
    Suitable for a single or double bed, ideal as a children’s bedroom or guest room.

  • Bedroom 3
    Flexible space that can be used as a bedroom, study, or home office.

  • Shared Bathroom (1 Unit)
    Common bathroom accessible from the living area, shared by Bedroom 2 and Bedroom 3.

General Construction Materials

Structure & Foundation

  • Reinforced concrete footing, ground beam, columns, and beams

  • Reinforced concrete floor slab

Walls

  • Cement sand bricks or clay bricks

  • Cement plaster to internal and external walls

  • Interior emulsion paint

  • Exterior weather-resistant paint

Roofing (Double Skillion Roof)

  • Mild steel roof truss

  • Metal deck roofing sheets

  • Aluminium foil insulation beneath roofing

  • Concealed rainwater gutter system

Flooring

  • Ceramic floor tiles for living, dining, bedrooms, and kitchen

  • Anti-slip ceramic tiles for bathrooms

Doors & Windows

  • Main entrance door: Metal or solid timber door

  • Internal doors: Plywood flush doors

  • Windows: Aluminium frame with clear glass

  • Bathroom doors: PVC or aluminium doors

Ceiling

  • Plaster ceiling or gypsum board ceiling

  • Simple and clean ceiling finish

Plumbing & Sanitary

  • PVC piping for water supply and discharge

  • WC set, wash basin, shower set for both toilets

  • Floor traps and proper drainage system

Electrical

  • Concealed electrical wiring

  • LED ceiling lights

  • Power points in all rooms

  • Switches and DB box installed to standard specification

Estimated Construction Cost (Malaysia)

  • Built-up Area: 600 sqft

  • Estimated Cost per sqft: RM180 – RM240

Estimated Total Cost:

  • RM108,000 – RM144,000

Final cost may vary depending on location, soil condition, finishing level, and local authority requirements.
