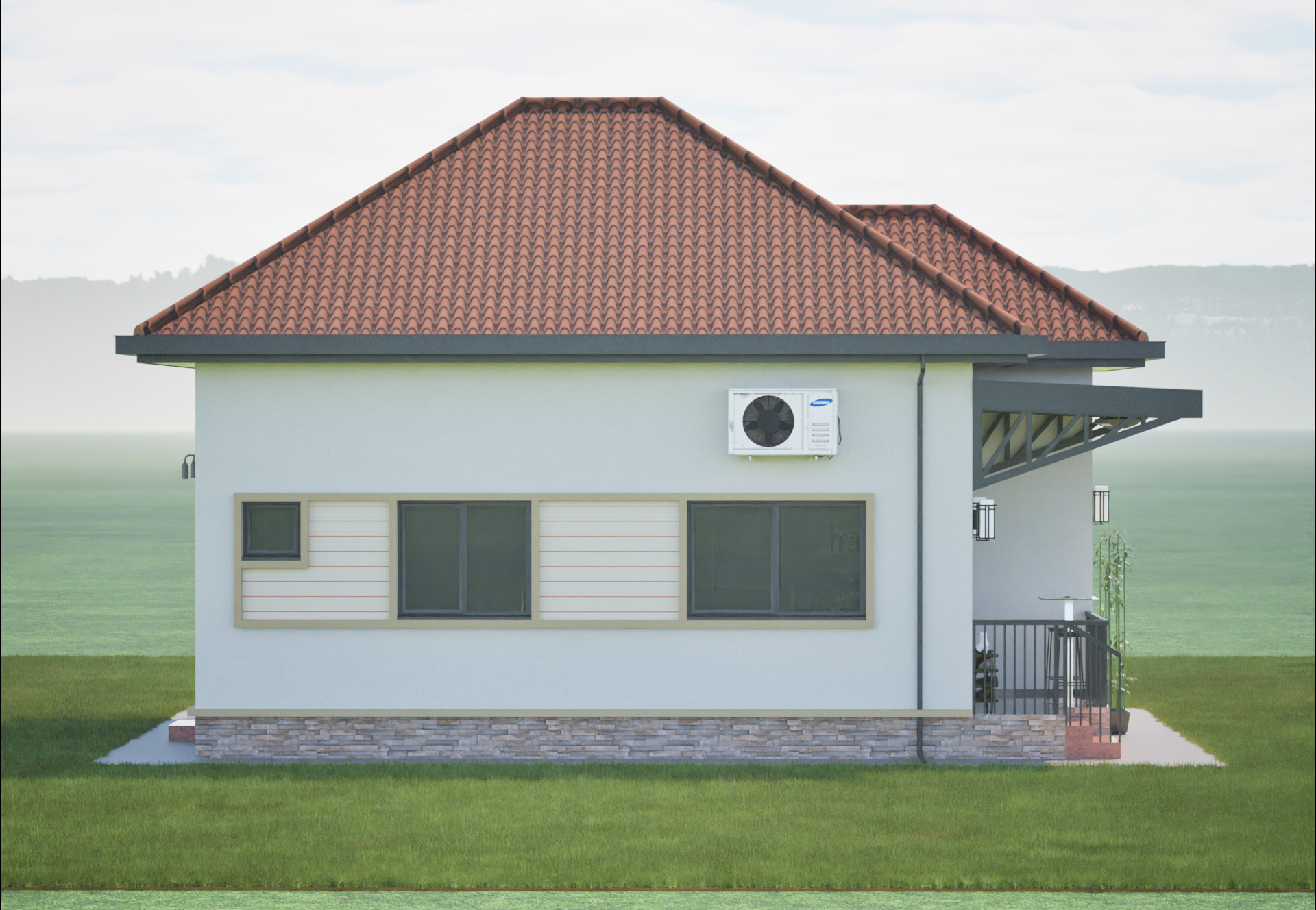

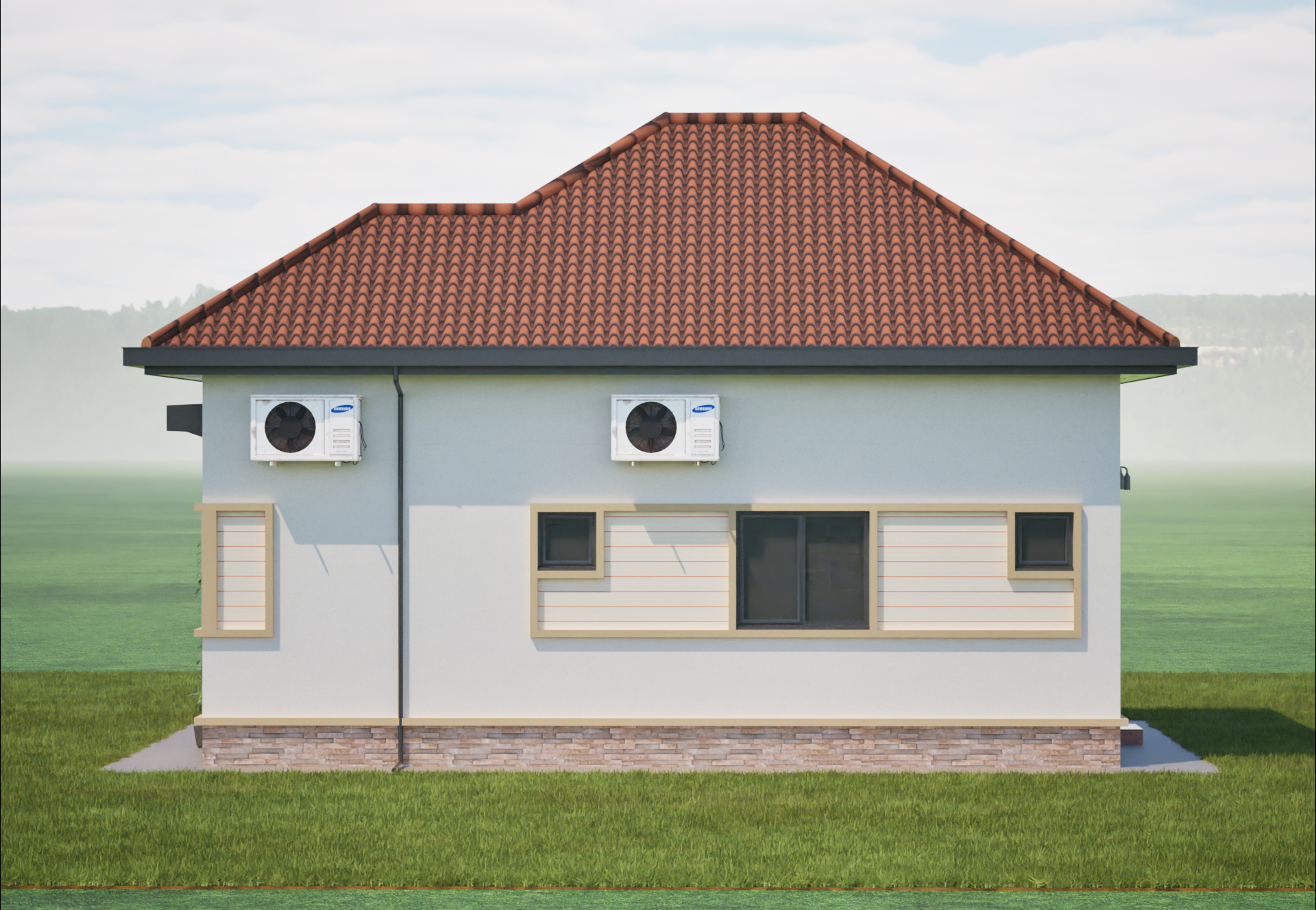

LEFT ELEVATION

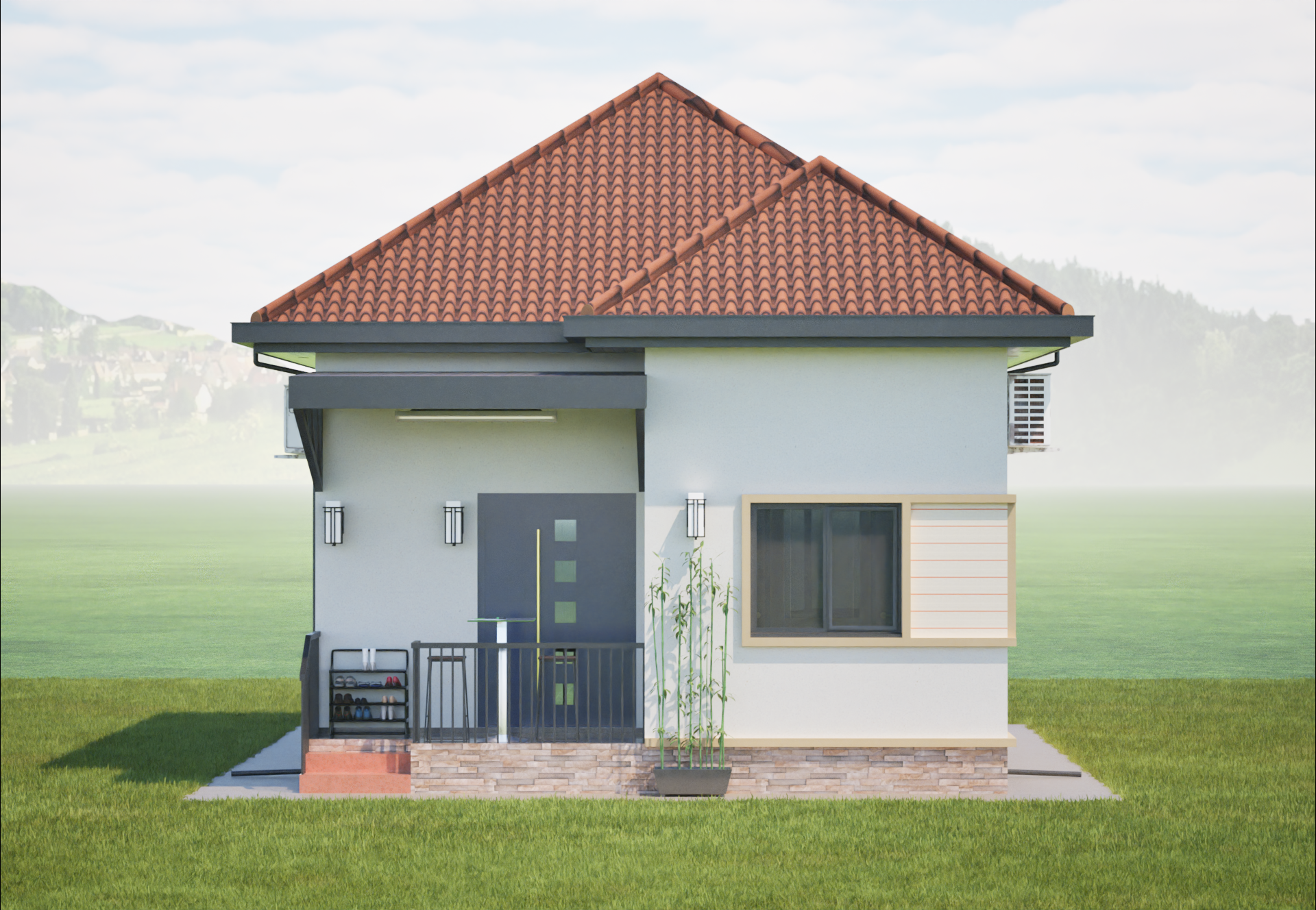

FRONT ELEVATION

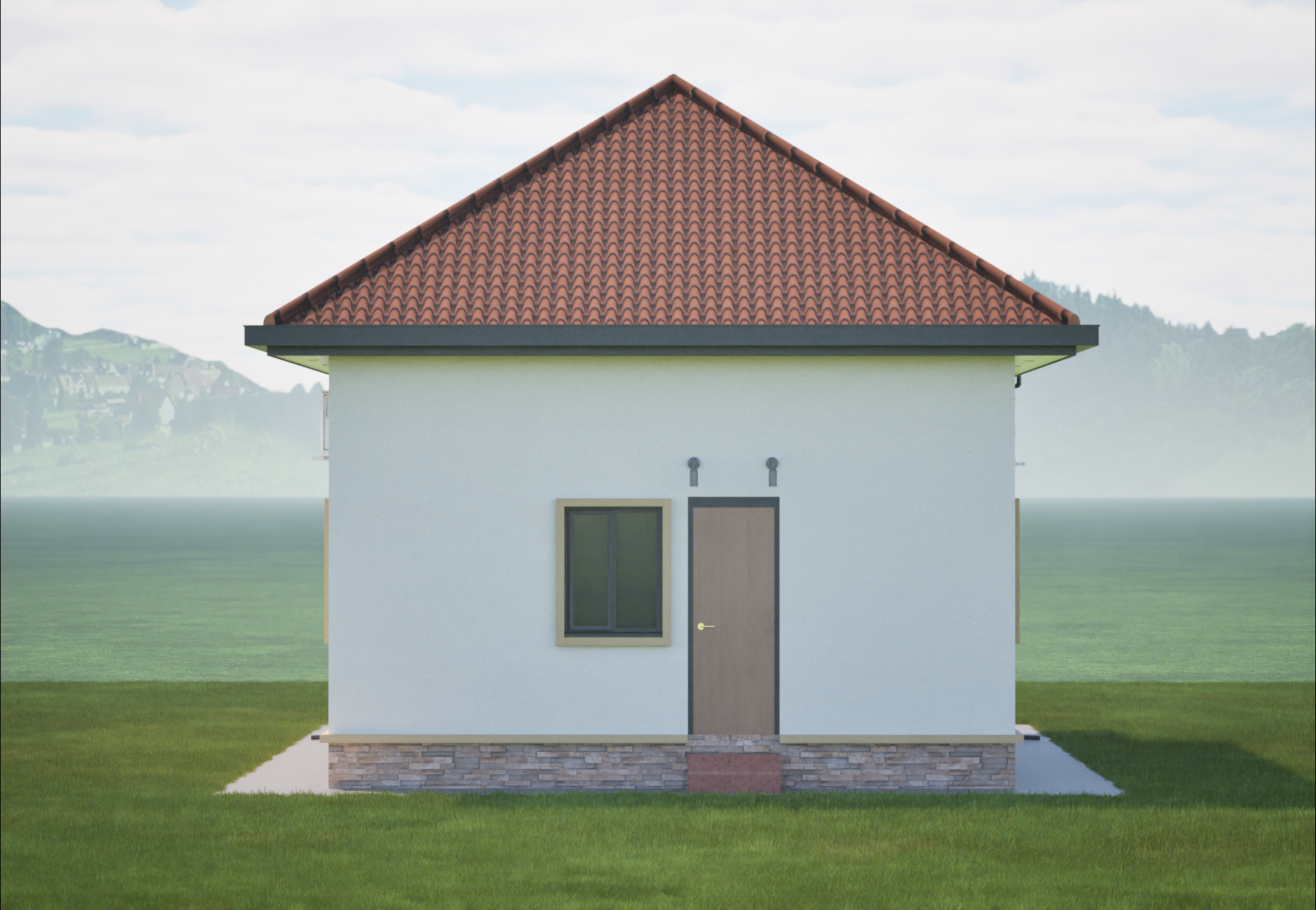

REAR ELEVATION

RIGHT ELEVATION

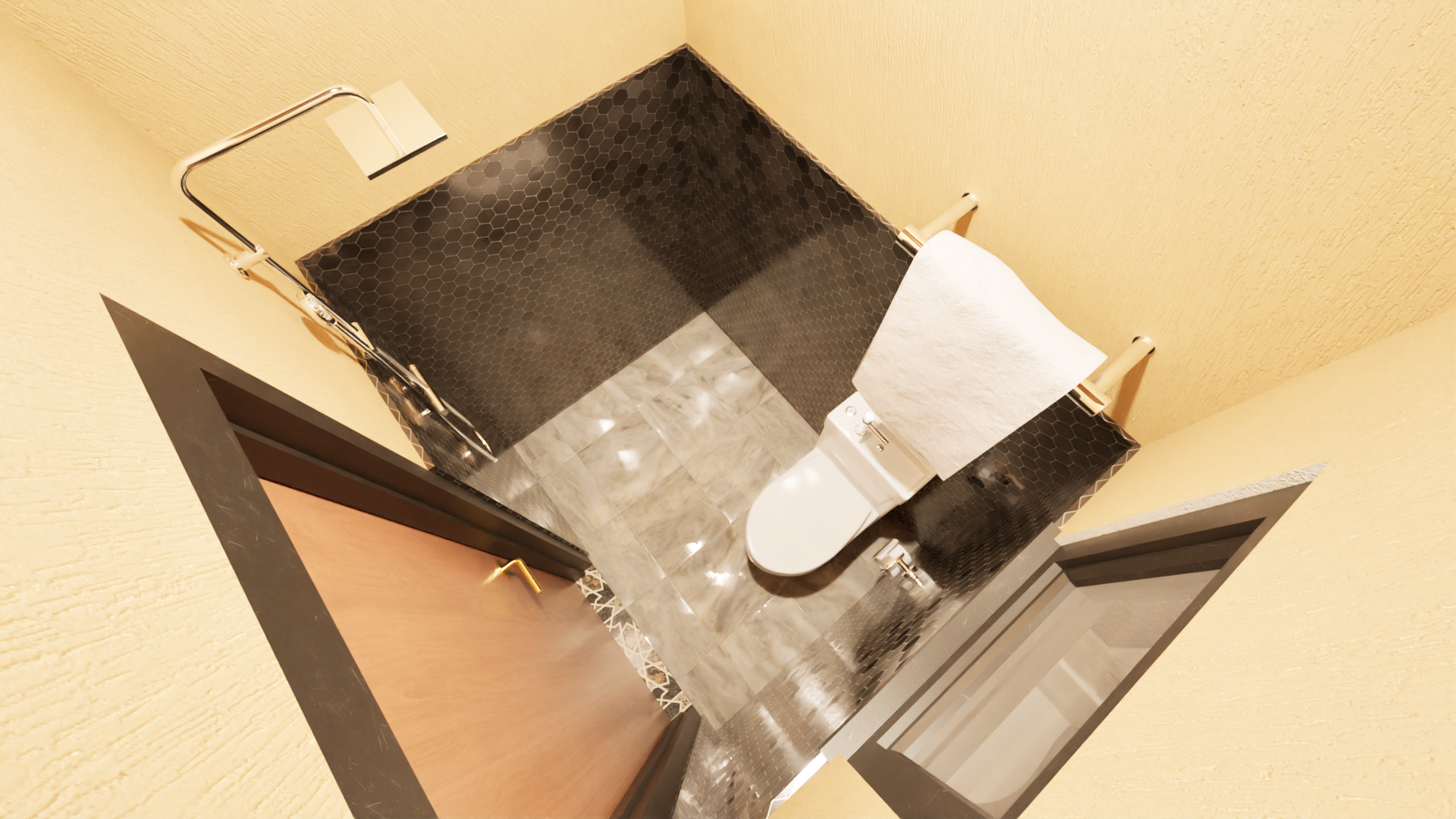

TOILET 1

TOILET 2

DINING & LIVING

GUEST TOILET

ISO. VIEW

BEDROOM 1

BEDROOM 2

KITCHEN

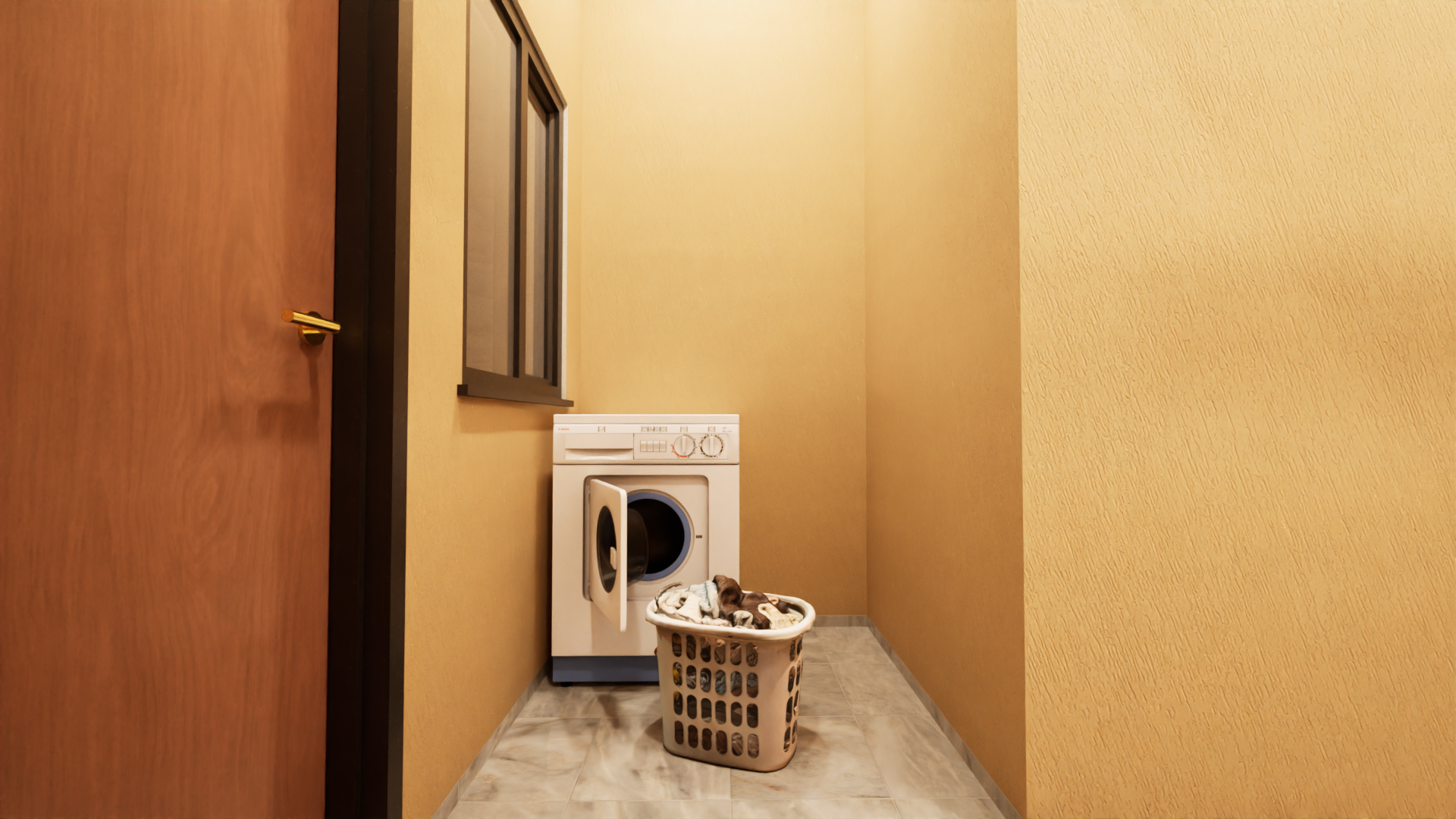

LAUNDRY

ENTRANCE

BEDROOM 1

BEDROOM 2

DINING & LIVING

GUEST TOILET

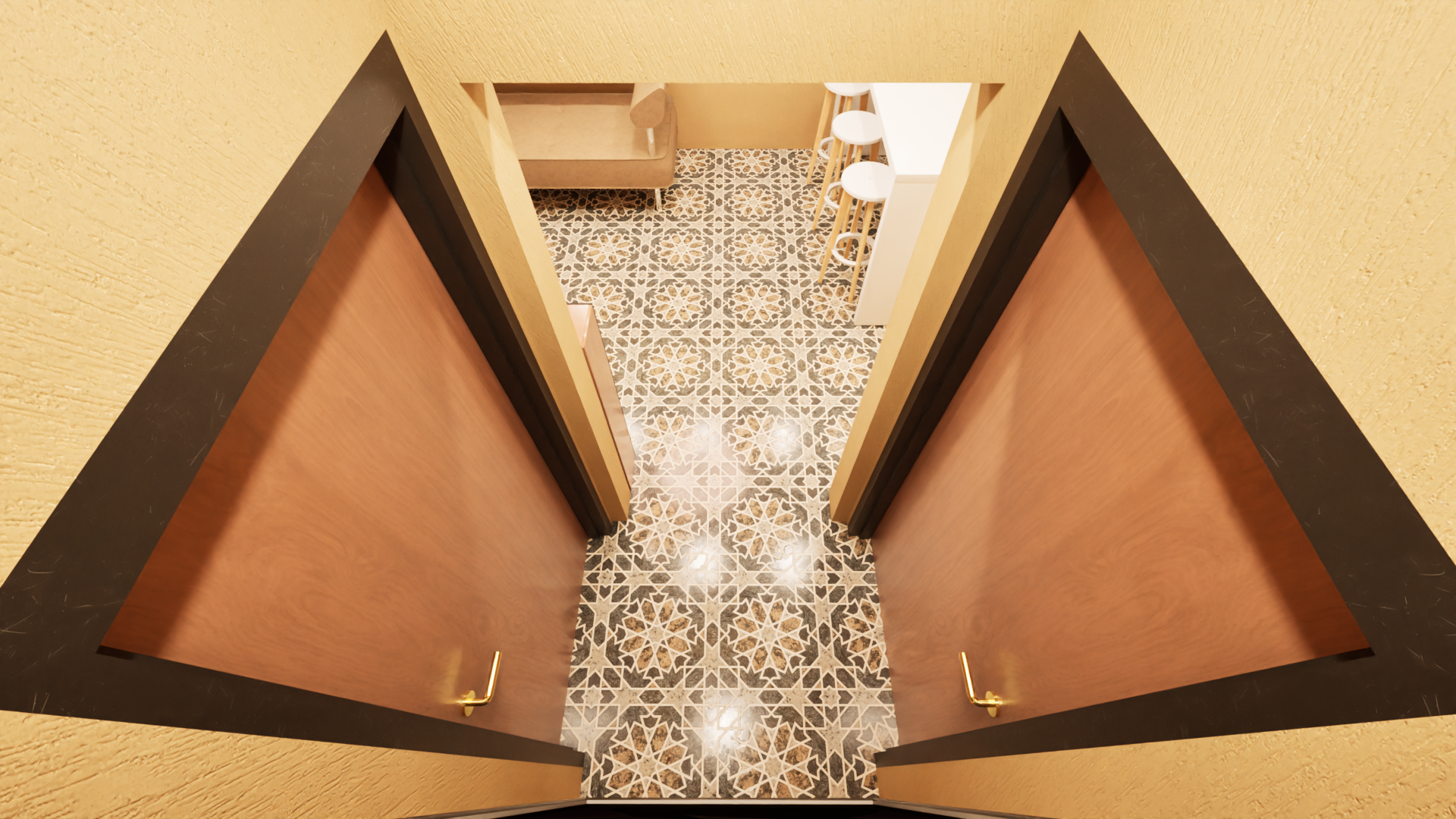

CORRIDOR

20 ft x 30 ft (600 sqft) – 2 Bedroom (Attached Toilets) + 1 Guest Toile

This 20 ft x 30 ft single-storey house is designed for comfort, privacy, and efficient space planning. The layout includes two bedrooms, each with its own attached bathroom, plus one additional guest toilet. A front awning area provides a shaded space for relaxing, socialising, or daily activities.

Layout Description

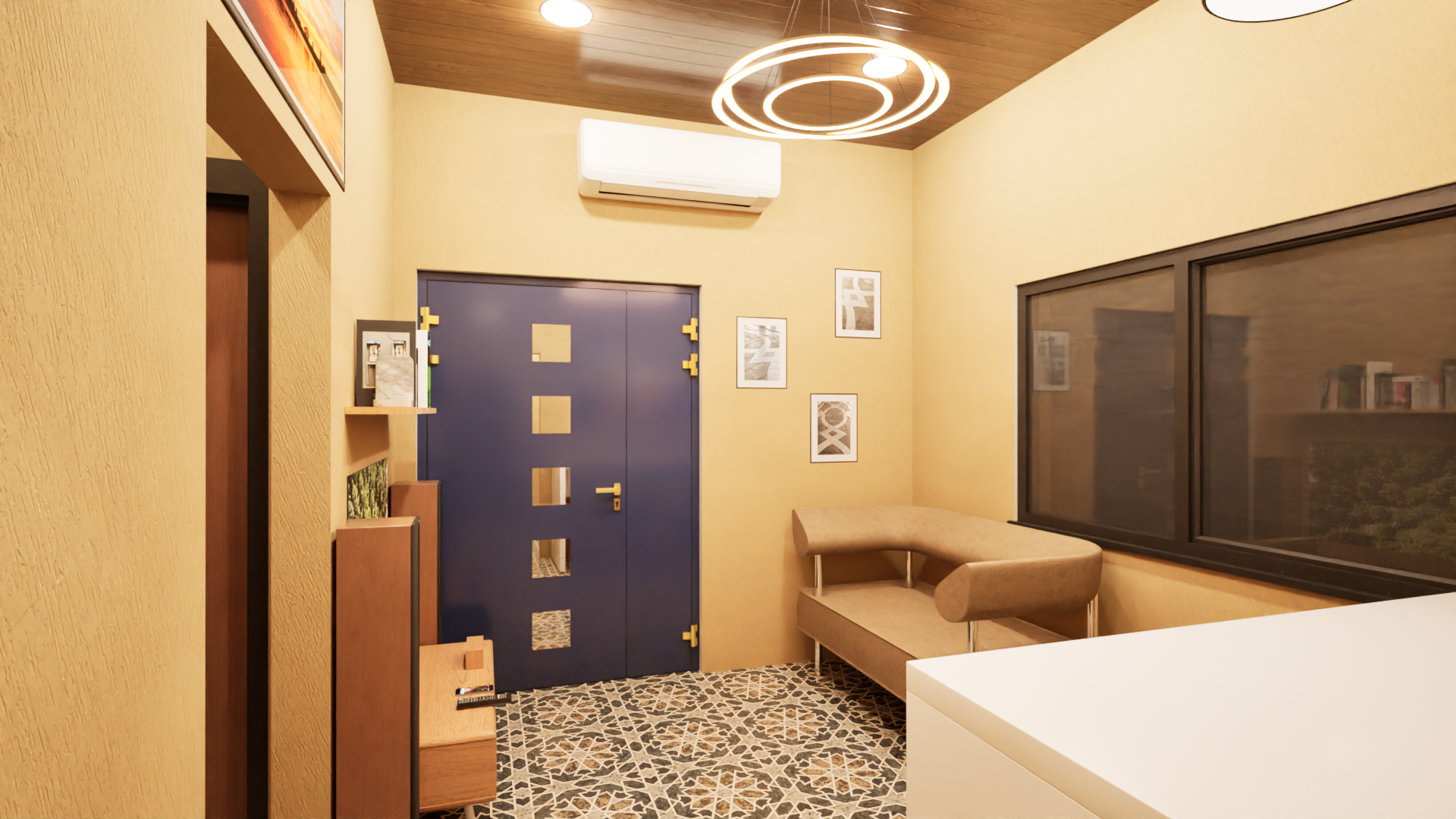

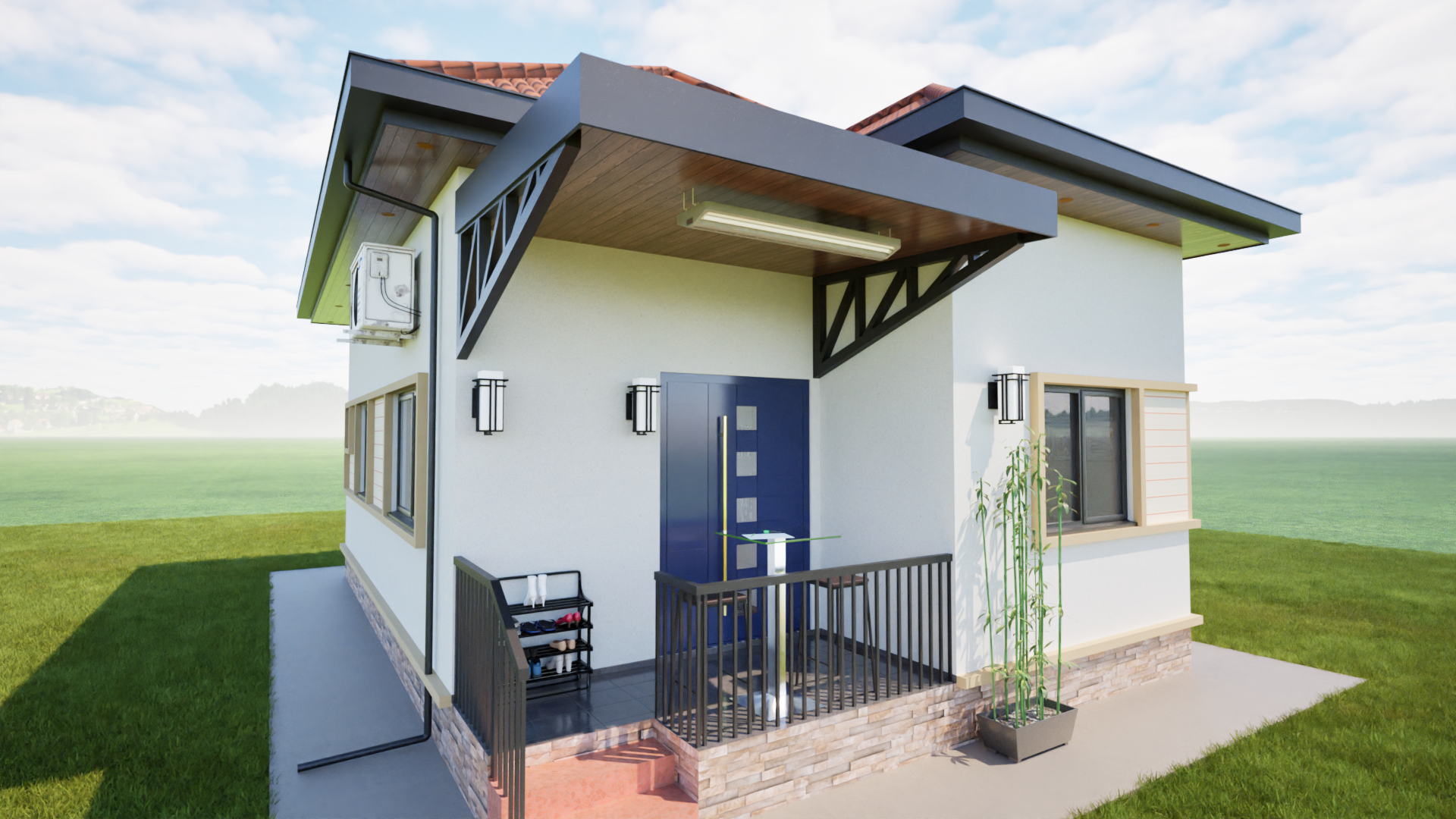

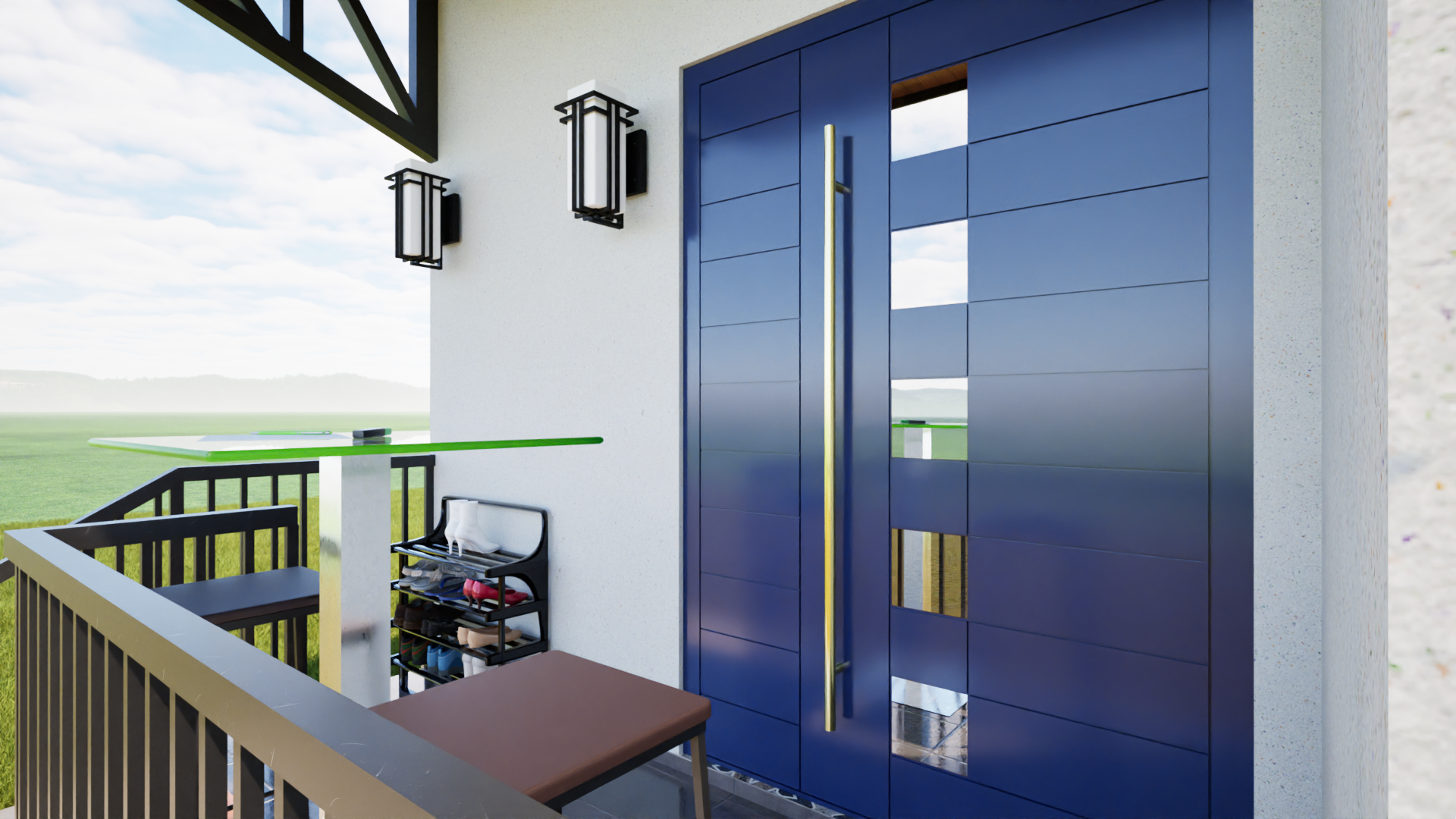

  • Entrance Awning / Porch

    • Covered awning at the front of the house

    • Suitable for seating, hanging out, or waiting area

    • Provides shade and rain protection for homeowners and guests

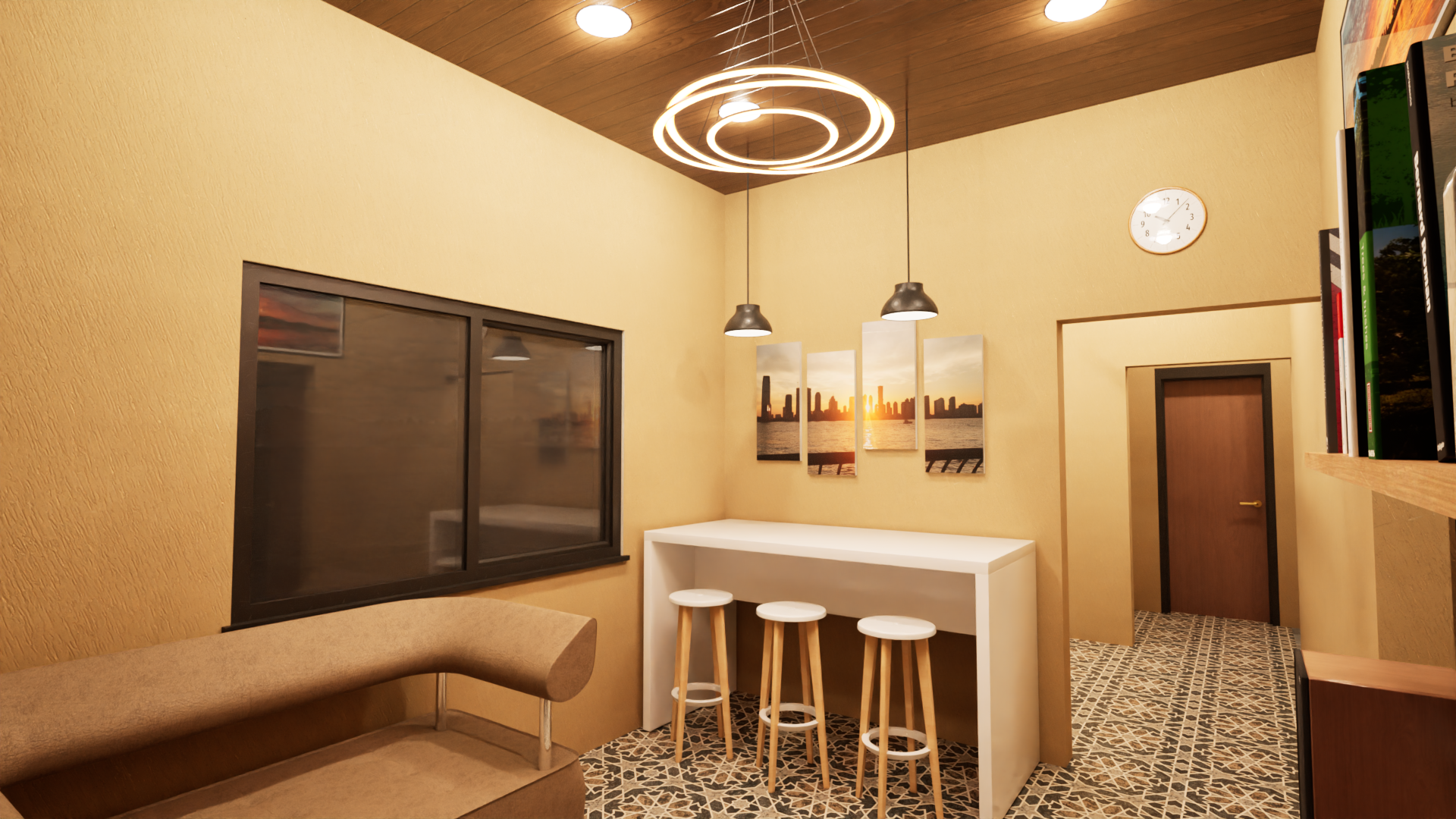

  • Living Area

    • Located directly after the main entrance

    • Space for sofa set, TV cabinet, and coffee table

    • Designed with good ventilation and natural lighting

  • Dining Area

    • Positioned between living area and kitchen

    • Can fit a 4–6 seater dining table

    • Open layout for better space flow

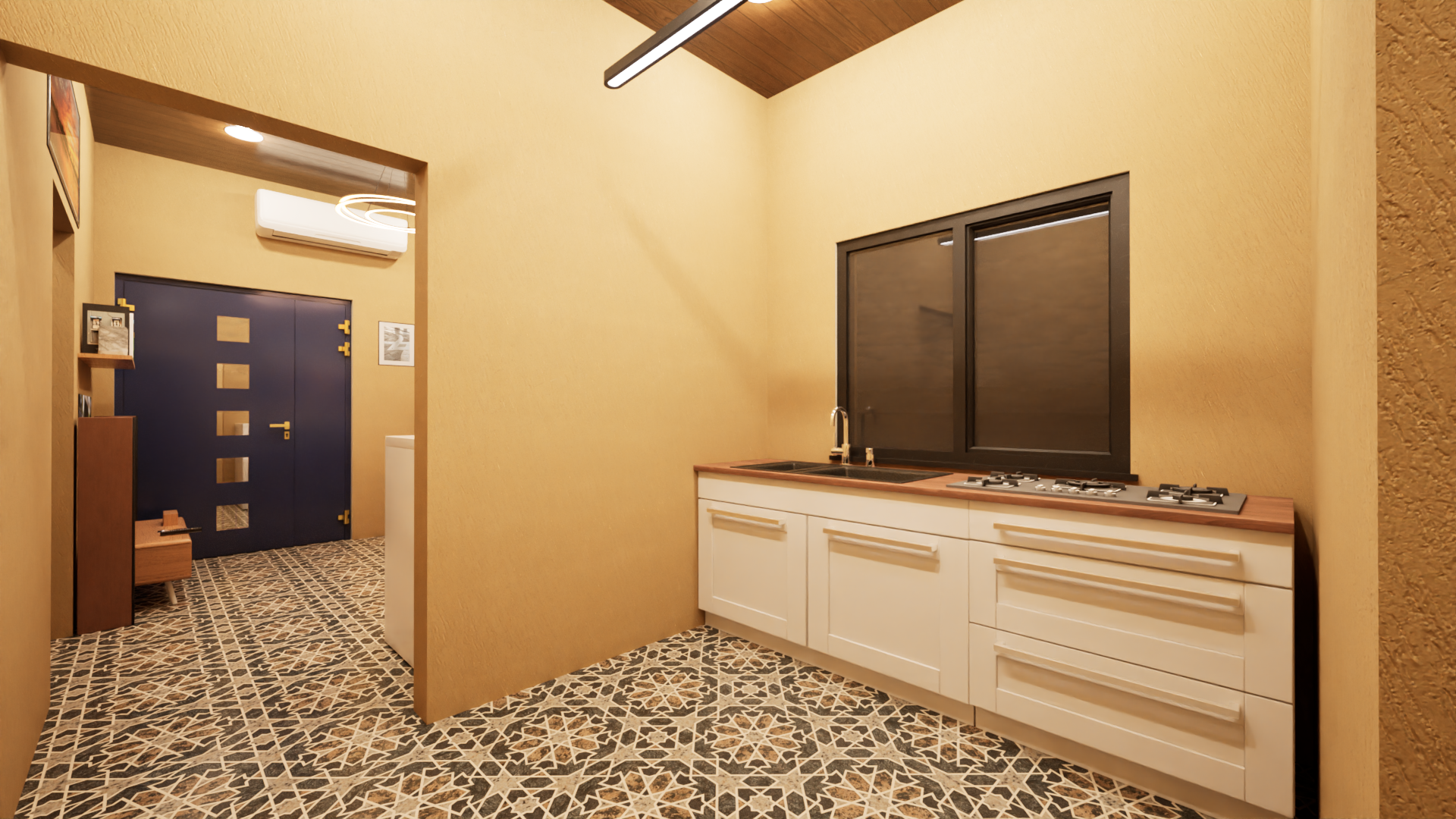

  • Kitchen

    • Located at the rear or side of the house

    • Space for cooking counter, sink, and cabinets

    • Optional back door for service access

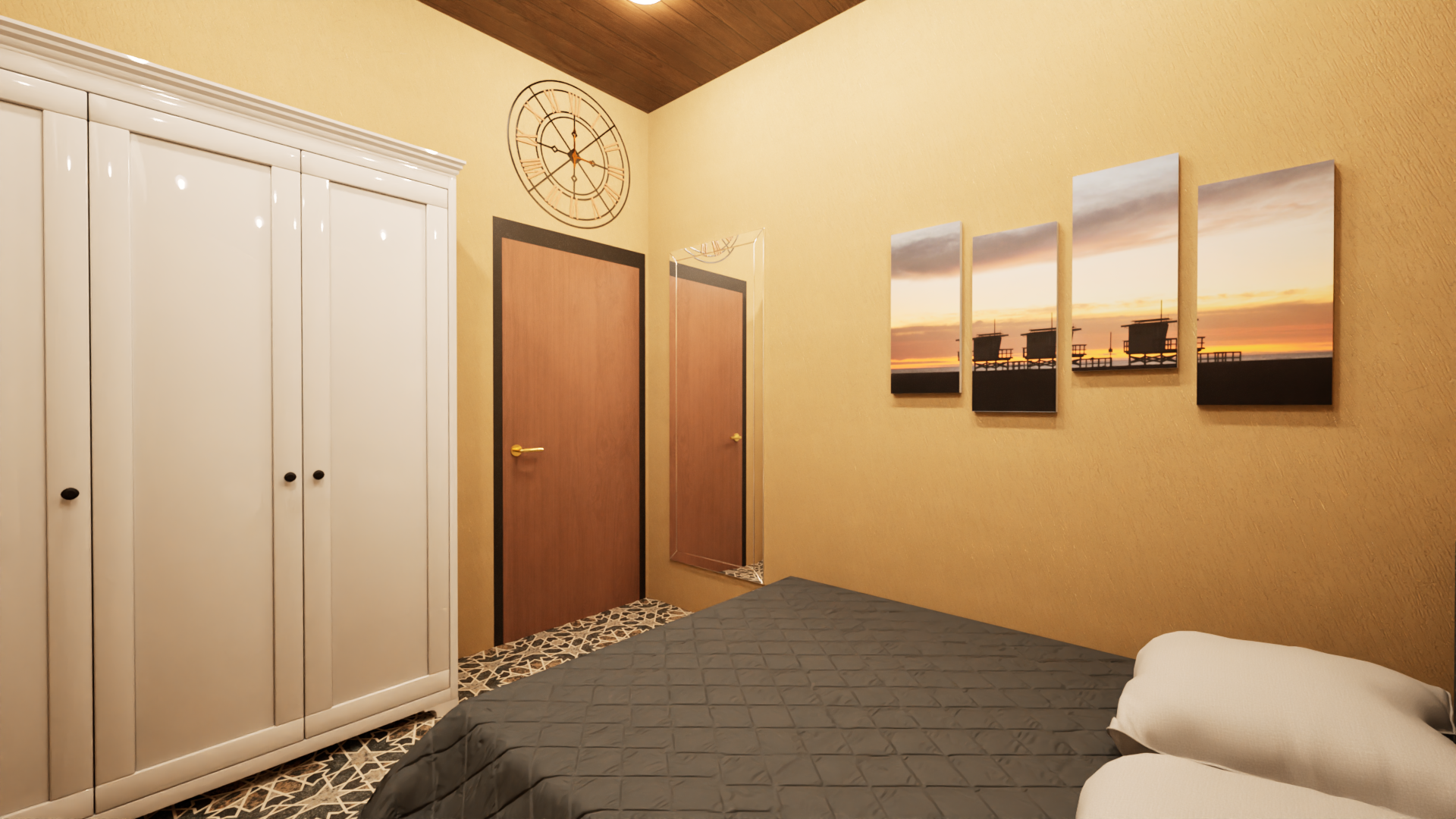

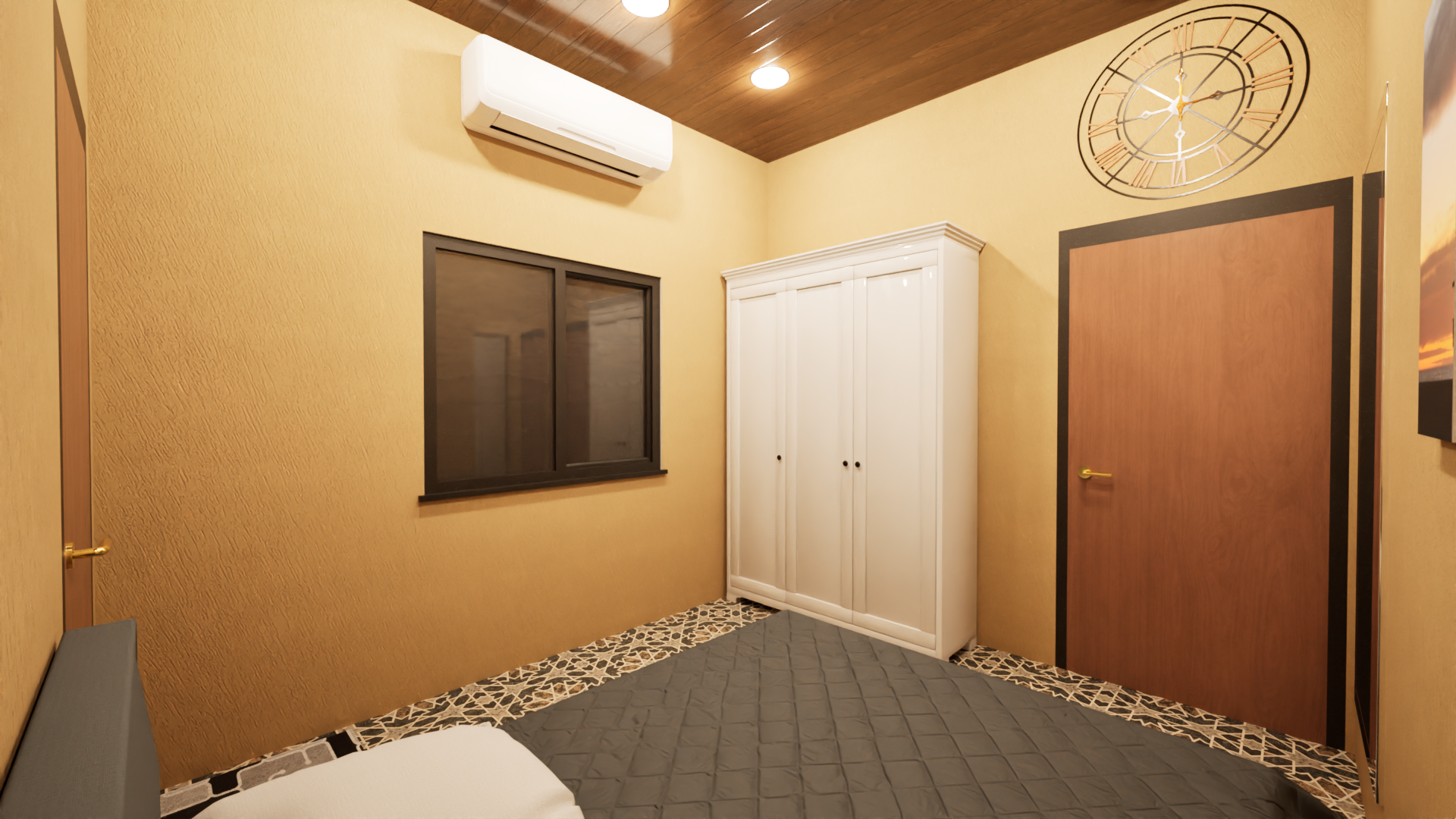

  • Bedroom 1 (Master Bedroom)

    • Fits a queen-size bed and wardrobe

    • Attached private bathroom

    • Suitable as the main sleeping area

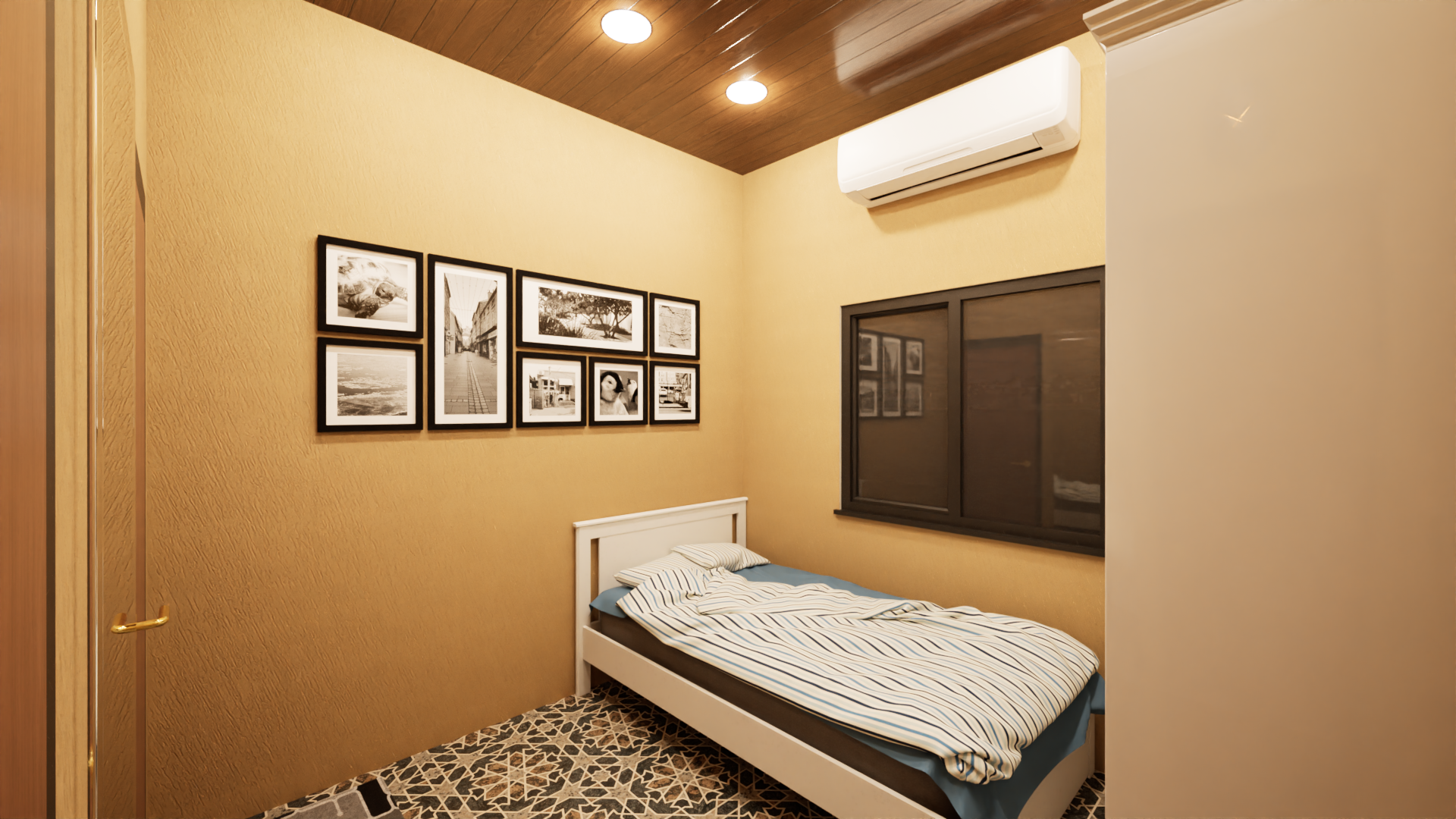

  • Bedroom 2

    • Fits a double or single bed with wardrobe

    • Attached private bathroom

    • Ideal for family member or guest

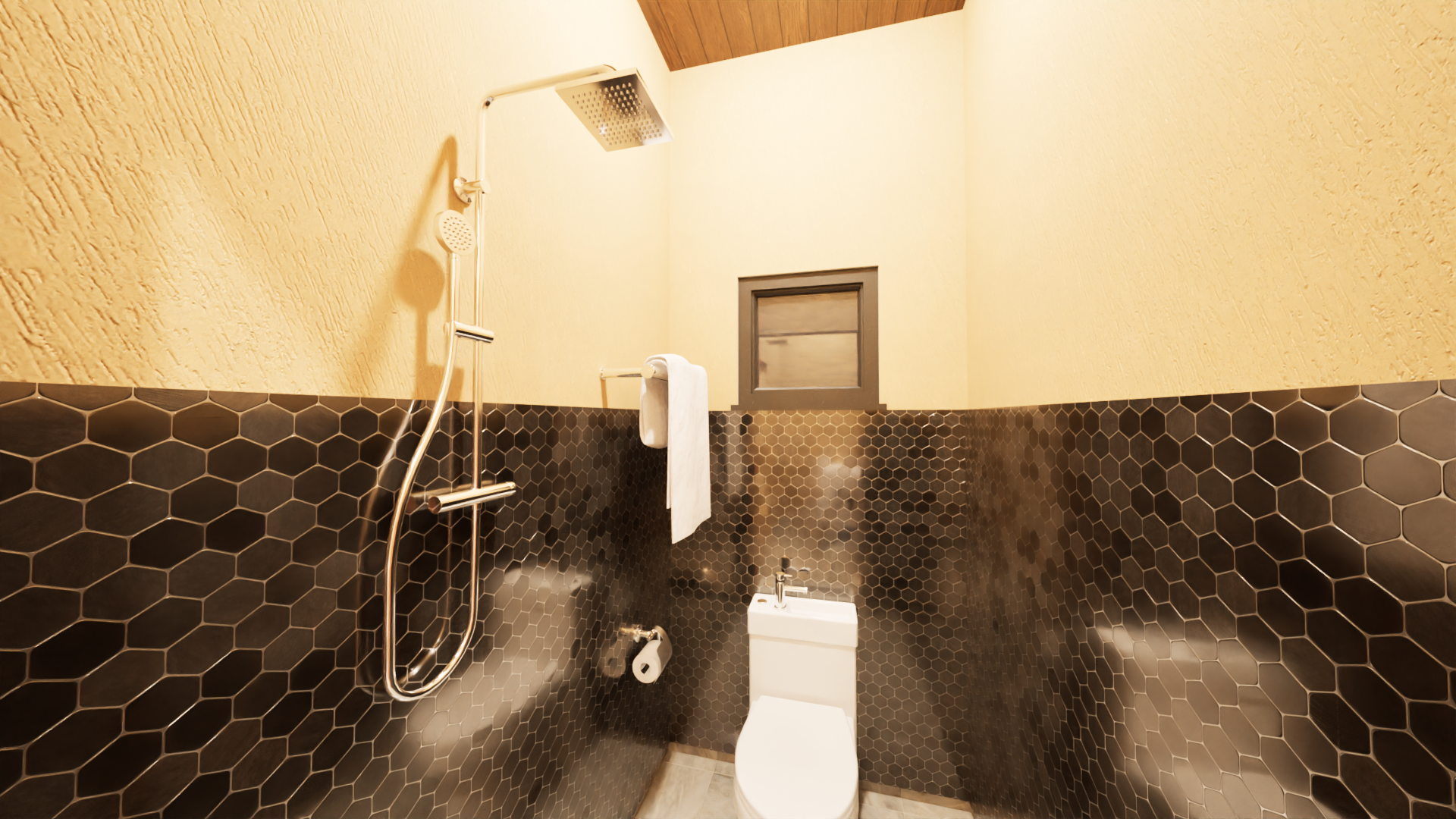

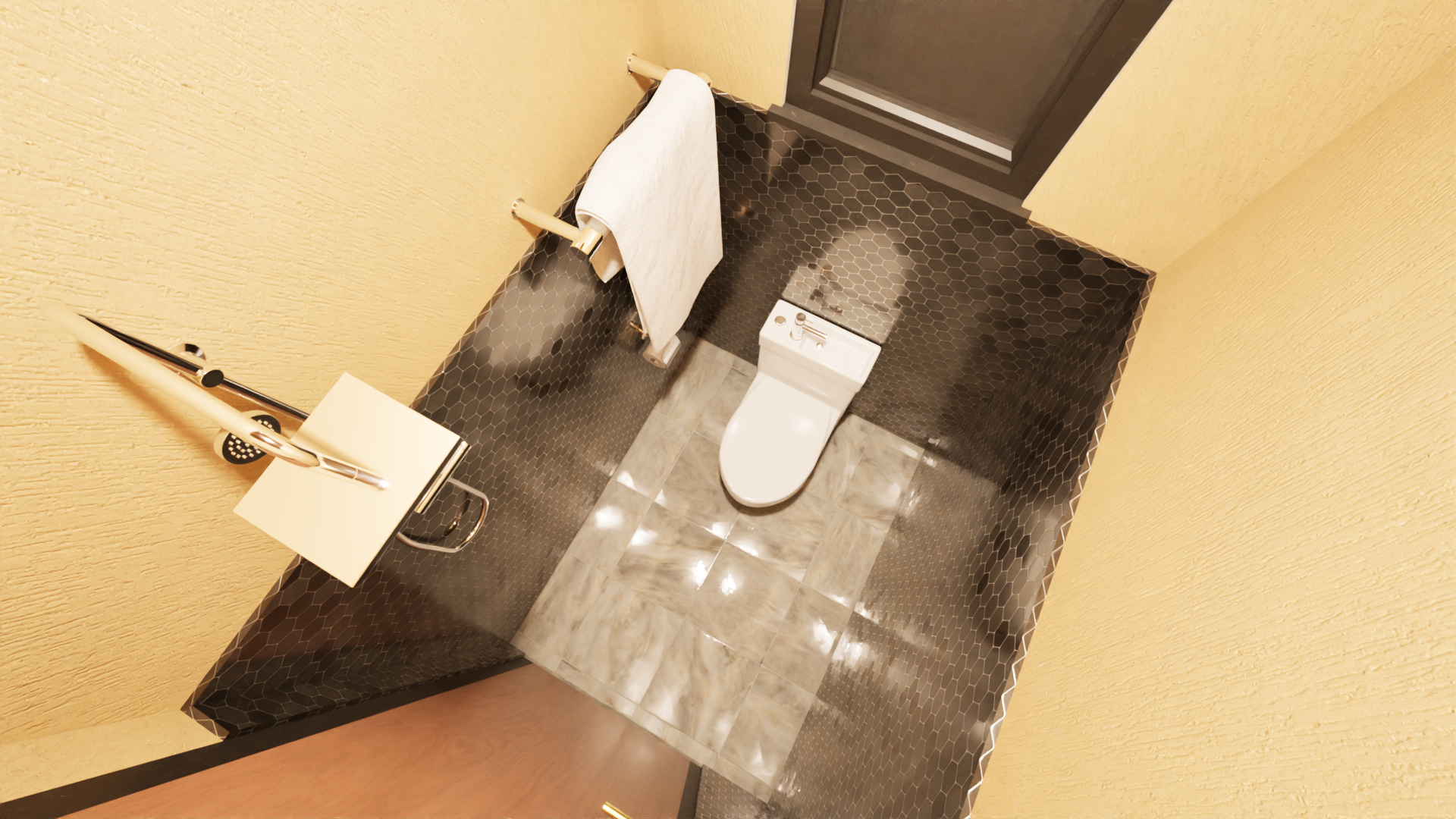

  • Guest Toilet

    • Accessible from common area

    • Convenient for visitors

    • Keeps bedroom toilets private

General Construction Materials

Structure & Foundation

  • Reinforced concrete footing and ground beam

  • Reinforced concrete columns and beams

  • Concrete floor slab

Walls

  • Cement sand bricks or clay bricks

  • Cement plaster (internal & external)

  • Interior emulsion paint

  • Exterior weather-resistant paint

Roofing

  • Main Roof:

    • Hip roof design

    • Clay roof tiles

    • Mild steel roof truss

    • Aluminium foil insulation

  • Entrance Awning Roof:

    • Synthetic resin roof tile / PVC plastic roofing

    • Light steel framing

Flooring

  • Ceramic tiles for living, dining, bedrooms, and kitchen

  • Anti-slip ceramic tiles for all toilets

Doors & Windows

  • Main door: Solid timber or metal door

  • Bedroom doors: Plywood flush doors

  • Toilet doors: PVC or aluminium door

  • Windows: Aluminium frame with clear glass

Ceiling

  • Plaster ceiling or gypsum board

  • Simple cornice finishing

Plumbing & Sanitary

  • PVC piping for water supply and drainage

  • WC, wash basin, shower set for each toilet

  • Floor trap and proper drainage system

Electrical

  • Concealed wiring system

  • LED ceiling lights

  • Power points for all rooms

  • DB box with MCB

Estimated Construction Cost (Malaysia)

  • Built-up Area: 600 sqft

  • Estimated Cost per sqft: RM190 – RM250

Estimated Total Cost:

  • RM114,000 – RM150,000

Final cost may vary depending on location, soil condition, finishing level, and local authority requirements.
